| System Configurations |

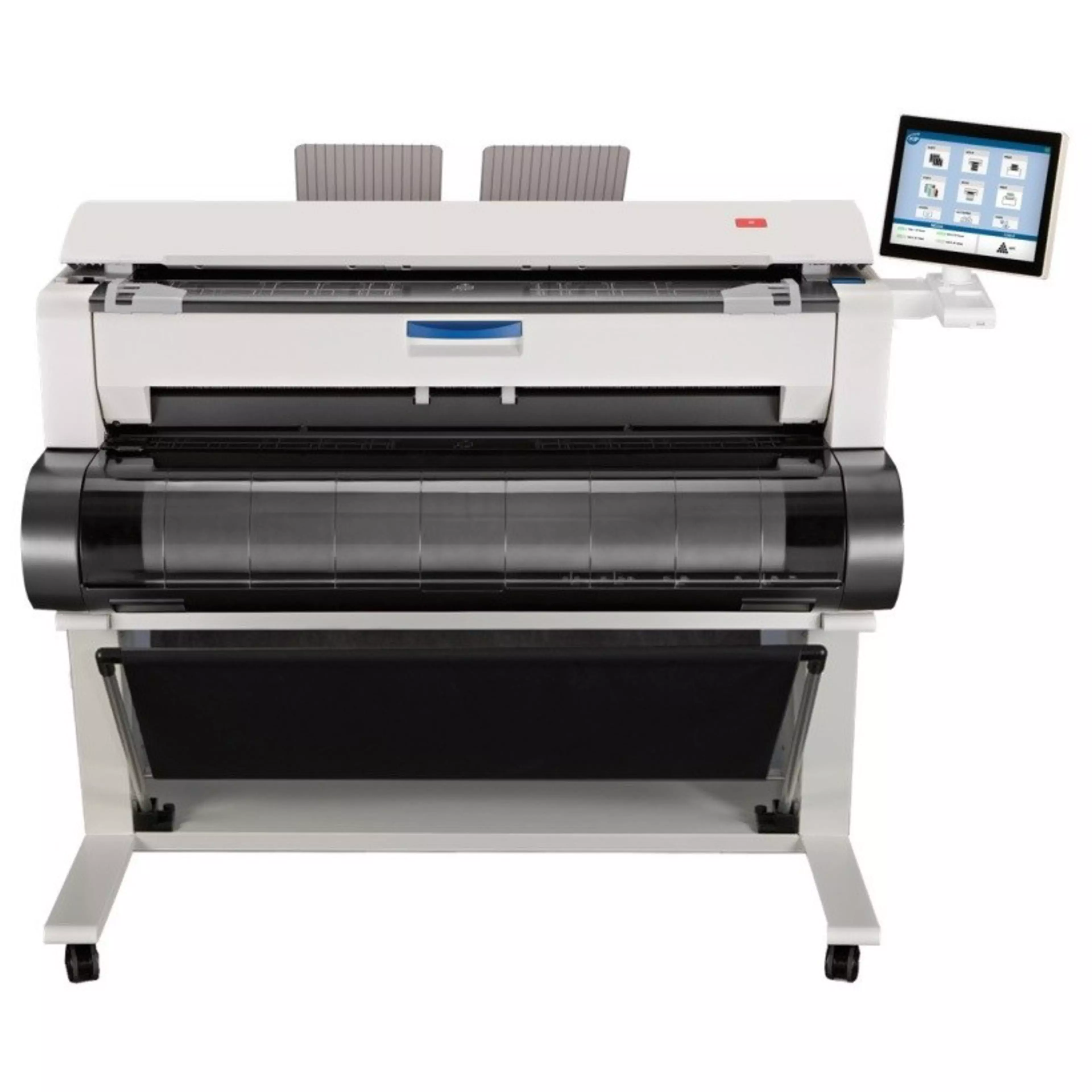

| 1 Roll Copy/Print System |
B&W wide format copier/printer |
| 1 Roll B&W Print/Copy/STF with Colour STF |
B&W wide format printer with B&W copy & scan and colour scan |

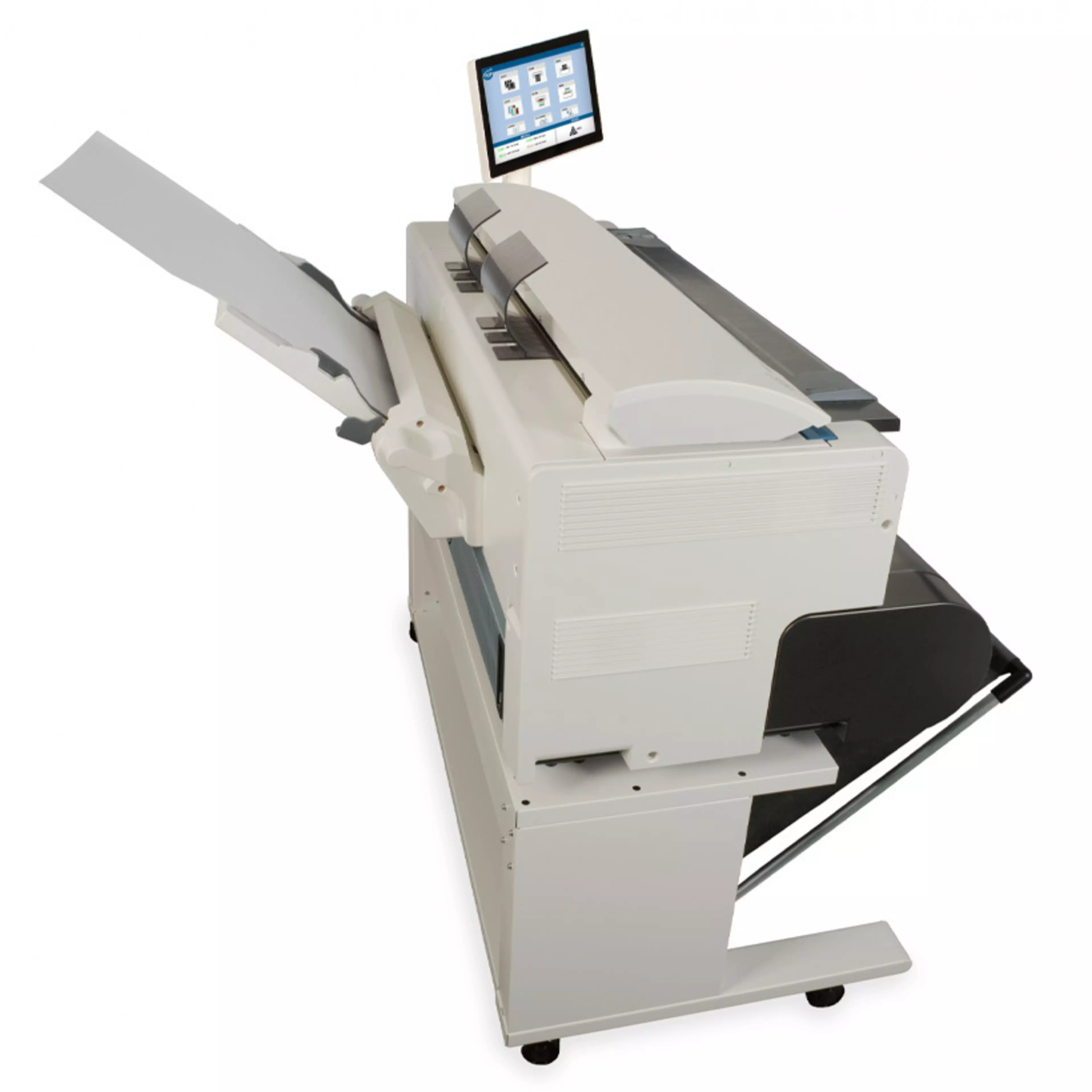

| Paper Tray (Optional) |
Holds up to 30 sheets |
| General |
| Description |
B&W wide format print/copy/scan with B&W/colour scanner |
| Type |
Electrophotography (LED) with organic photoconductor (OPC) and closed toner system |
| Speed |
1,6 A0 size pages per minute, FPOT (First Print Output Time) 41 seconds for one A1 size page |
| Warm Up Time |
<2.5 minutes from sleep |
| Configurations |
Multifunction system (print/copy/scan) 1 roll / manual sheet bypass (standard) |
| Options |
Paper tray: Holds up to 30 sheets |
| Electrical Requirements |
220 – 240 V, 50/60 Hz 10 A |
| Power Consumption |
Sleep: < 8.2 W Printing: 1.6 kW – including scanner & controller |
| Dimensions |
1,450 mm x 833 mm x 1,330 mm |
| Weight |
177 kg with stand |
| Printer |
| Print Resolution |
600 x 1800 dpi |
| Paper Capacity |
139 sq. m roll media, 5.5 sq. m sheet media |
| Output Sizes Width |
210 mm to 914 mm |
| Output Sizes Length |
3,600 mm (standard) – 2,400 mm option (technician configured) |
| Paper Weight |
Bond 64–84 gsm, vellum\translucent bond 80 gsm, film 75 micron |
| Media Type |
Bond, vellum, translucent bond, film (compatible with recycled & coloured bond) |
| Controller |
| Controller Type |
KIP KS8 with Windows 7 Embedded |
| Memory |
2 GB DDR3 standard – upgradable to 4 GB |
| Hard Drive |
160 GB minimum unlimited upgrade |
| File Formats |
DWF, PDF, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4, VCGL, Uncompressed, Grayscale TIFF, TIFF Packbits, IOCA, EDMICS, TLC (KIP), PNG, JPEG |
| KIP 770 Scanner |
| Scanner Type |
Fully integrated CIS with KIP RTT Technology |
| Scan Resolution |
600 x 600 dpi optical resolution |
| Scan Speed |
Up to 195 mm per second (B&W)
Up to 66 mm per second (Colour) |
| Scan Format |
TIFF, multipage TIFF, PDF, PDF-A, multipage PDF, DWF, multipage DWF, JPEG, CALS |
| Scan Destination |
Local USB (removable media), unlimited KS8 mailboxes (local), unlimited FTP, unlimited SMB, unlimited cloud – Google Drive/Dropbox/Box/OneDrive/SharePoint |
| Original Size Width |
210 mm to 914 mm |
| Original Thickness |
Up to 1.6 mm thick |
| KIP Print Management Software |
| KIP Touchscreen |
Integrated Cloud Connections |
Full integration with OneDrive, Google Drive, Dropbox, Microsoft SharePoint & Microsoft Office 365 OnlineTM. |
| Concurrent Print & Scan to File |
Scan images to file while printing, select number of copies, select output media. |
| File to Print |
Fully cloud connected. Scan mailboxes, print from removable media, print from network locations, view images prior to printing, apply folding preferences, save/recall print jobs. |
| Copying & Scanning |
Fully cloud connected. collated sets copying, recall, edit & reprint previous jobs, set copy & concurrent print, apply digital stamps, scan directly to multi-page PDF, DWF or TIFF, apply folding preferences to copies, scan to USB removable media drives. |
| System Management |
Print queue control, keycode management, inkjet configuration, illustrated operator guides, system guides, service mode access, system preset access. |
| KIP Printing Applications |
KIP Print |
KIP Print network printing software is an easy to use application designed to provide operators with a fast and accurate means of producing high quality print sets. An intuitive ribbon style interface with an emphasis on job building; featuring column browsing, colour thumbnail previews and total preflight control. |
| KIP Cloud Printing |
The ability to produce wide format prints using nothing more than an email with attachments and a few key words helps keep mobile clients on the go to stay productive. |
| KIP PrintNet Web Printing |
Web-based printing utility which facilitates management of the print queue, configuration
of files for printing from Windows, UNIX and Mac based internet browser applications. |
| KIP Windows/AutoCAD Drivers |
Windows driver supports 32 or 64 bit printing, set collation, job accounting, media
selection & folding features. AutoCAD driver enables printing directly from AutoCAD
applications with advanced vector/raster print data control. |
| KIP Touchscreen Printing |
KIP Touchscreen eliminates the need for additional PC hardware by printing documents
from removable media such as standard USB drives and network drives. |
| KIP Cost Review Application |
Cost Review Application and KIP Track System |
KIP Cost Review Application reports can be delivered via email or printed on demand to provide information related to toner coverage, media use and recent job details. When activated, the KIP Track system requires operators to log in before operating. |
| KIP Color Plus |
Color Scanning |
Scan directly to PDF, JPG and TIFF, automatic quality presets, scan directly to USB and removable media, scan dpi from 200-600, scan to FTP, hard drive, user mailbox, email, scan preview, auto size detection, auto image colour, original and copy presets, unlimited presets, lead and trail edge adjustments. |
| Color Copying (optional) |
Copy directly to wide range of inkjet printers, multiple copy count, reduction enlargement, rotate, mirror, invert, zoom, area of interest, scale to fit, auto image colour, original and copy presets, unlimited copy presets, lead and trail edge adjustments, closed loop calibration, copy preview. |
| Color Printing (optional) |
Print single or multiple (sets) images directly to wide range of inkjet printers, multiple print count, reduction enlargement, rotate, mirror, zoom, invert, multi-touch preview, area of interest, scale to fit, auto image colour, presets, lead and trail edge adjustments, print preview. |
| Software Options |
| PDF Printing Keycode |
Includes support for Postscript levels 1, 2 & 3, PDF 1.7 |
