Profesionalni tiskalnik KIP 720
Profesionalni tiskalnik KIP 720

KIP 720

  • Optično branje do 914 mm širokih dokumentov s potiskano stranjo zgoraj
  • Resnična optična ločljivost 600 x 600 dpi
  • Tehnologija optičnega branja CIS: optično branje v visoki ločljivosti z 0,1 % natančnostjo optičnega branja
  • Brez odbojne optike: brez ogrevanja
  • Povezljivost USB 2.0
  • Skladnost z oznako Energy Star
Stopite v stik z nami!
Profesionalni tiskalnik KIP 720
Profesionalni tiskalnik KIP 720

Lastnosti

Lastnosti

KIP 720

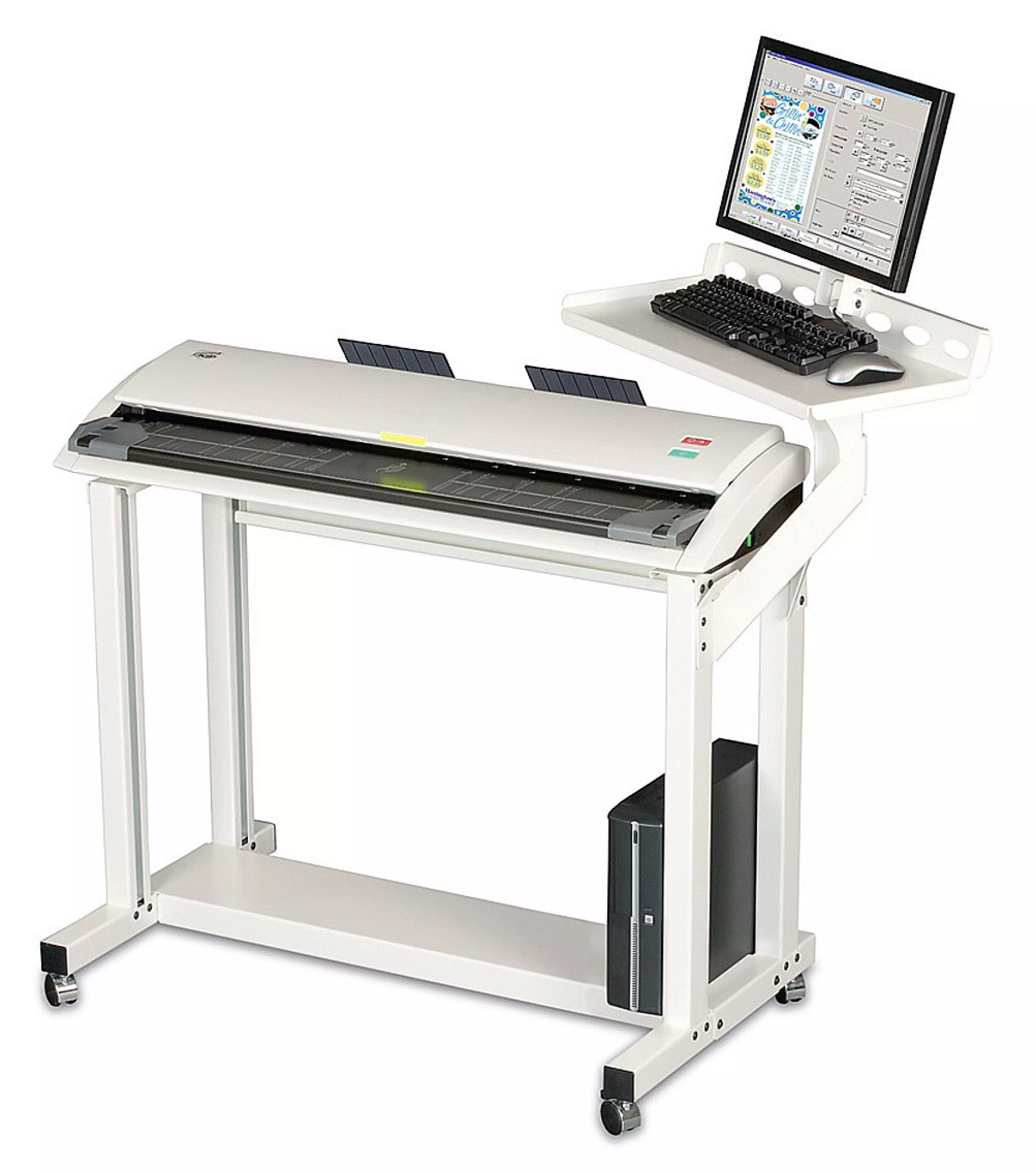

Optični bralnik velikega formata KIP 720 je sistem za zajemanje 24-bitnih, 914 mm širokih, slik s polno barvno ločljivostjo, ki je kot nalašč za obdelavo fotografij, zapletenih zemljevidov in risb programov AEC/CAD. Njegov način optičnega branja s tehnologijo CIS (Contact Image Sensor) omogoča hitro zajemanje slik v visoki ločljivosti z energijsko varčnim delovanjem in kompaktno zasnovo. Tiskalnik KIP 720 omogoča barvno in črno-belo optično branje in kopiranje z vrhunsko hitrostjo optičnega branja in neprekosljivo natančno reprodukcijo slik.

Profesionalni tiskalnik KIP 720

Specifikacije in prenosi

Specifikacije in prenosi
Model: KIP 720 image scanner
Type: C.I.S. with KIP RTT Technology
Scan resolution 600 x 600 dpi optical resolution
Scan Speed Up to 195 mm per second (B&W)
Up to 66 mm per second (Colour)
Scan Format TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF,
DWF, Multipage DWF, JPEG, CALS
Scan Destinations Local USB (Removable Media)
Unlimited IPS Mailboxes (Local)
Unlimited FTP
Unlimited SMB
Original Size Width 279 - 914 mm
Original Thickness Up to 1.6 mm thick
Interface USB 2.0
Dimensions 1,092 mm x 406 mm x 170 mm
Weight 25 Kg
Electrical 100-240V AC 50/60 Hz
Power Consumption < 50 W
Minimum PC Requirements

Intel Pentium G630 2.7 GHz or faster
Windows 7, 32- or 64-Bit operating system
250 GB or larger, (free space) SATA Hard Disk Drive
(Example: 100 colour or 300 mono A1 Size images in
a large set would require up to 5 GB)
4 GB DDR SDRAM
DVD Optical Drive
20” flat panel monitor (with VESA 75 or 100 pattern for use with KIP Scanner Stand) - VGA or
HDMI based on PC connection
Integrated Intel Video
Network adapter – Integrated 100/1000 Ethernet LAN.
(Wireless is not recommended due to file transfers during copy process)
One available USB 2.0 port or higher
Standard USB Keyboard and USB Mouse
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

Če želite imeti na voljo vse informacije o aparatu si oglejte prospekt (angleško).

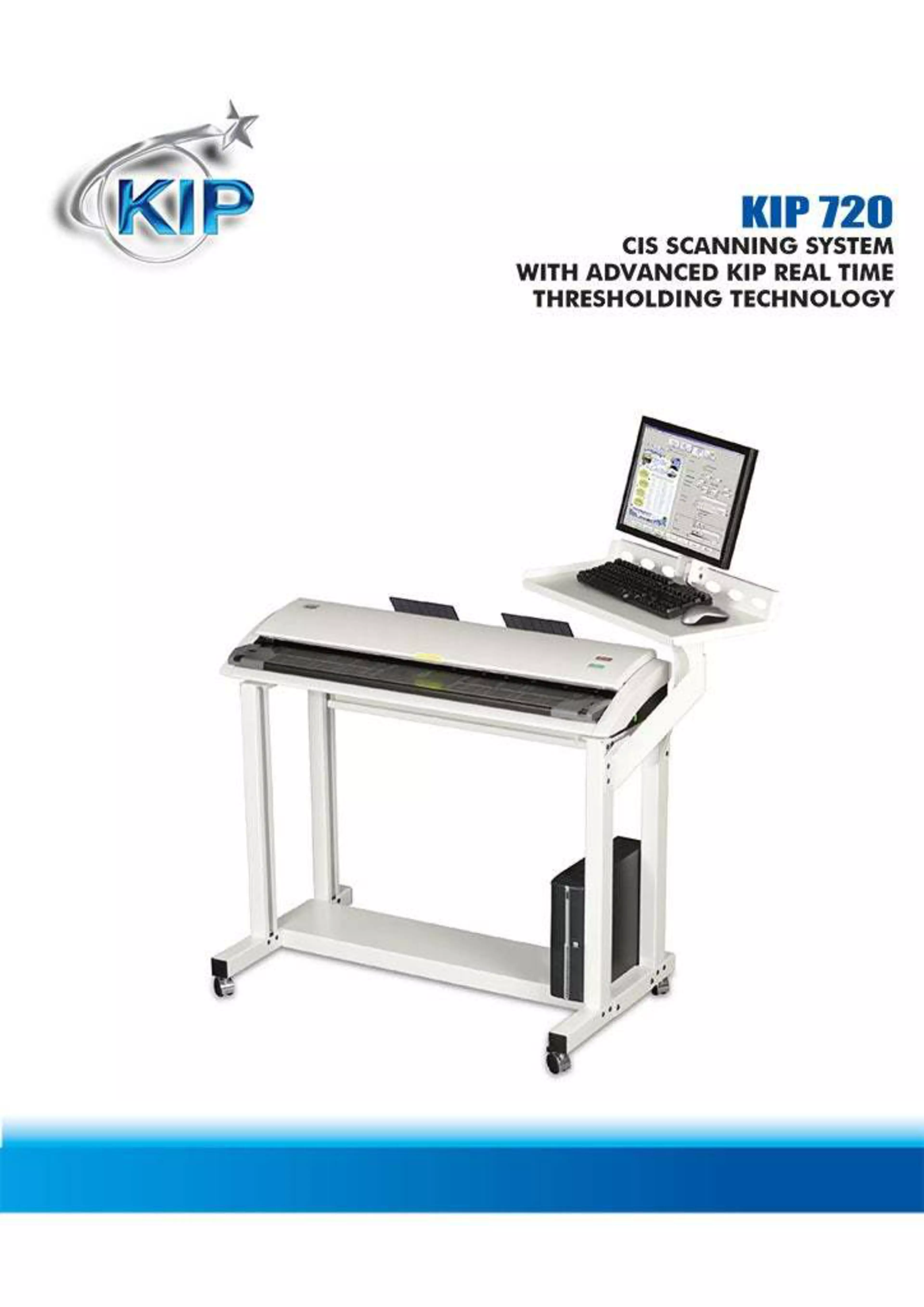

KIP 720 prospekt
