Domov Strojna oprema Wide Format KIP 7170

KIP 7170

  • Tiskalnik, kopirni stroj in barvni optični bralnik za dokumente širokega formata - vse v eni napravi
  • Praktična uporaba – dostop do pomembnejših funkcij s sprednje strani, vrata USB
  • Kompaktna zasnova – majhne zunanje mere s samo 1 kvadratnim metrom in integriranim nalaganjem z zgornje strani
  • Prilagodljivost za več medijev – 2 integrirani roli za medije
  • Produktivni tiskalnik z eno tiskalno glavo LED
  • Nov integriran večdotični zaslon na dotik – omogoča intuitivno upravljanje z dotikom v slogu tabličnih računalnikov
  • Tiskanje iz oblaka in optično branje v oblak
  • Razširljivost – s funkcijo nalaganja/pregibanja je idealen za decentralizirana okolja, njegova razširljivost pa mu omogoča tudi izpolnjevanje potreb centraliziranih okolij
Stopite v stik z nami!

Lastnosti

Lastnosti

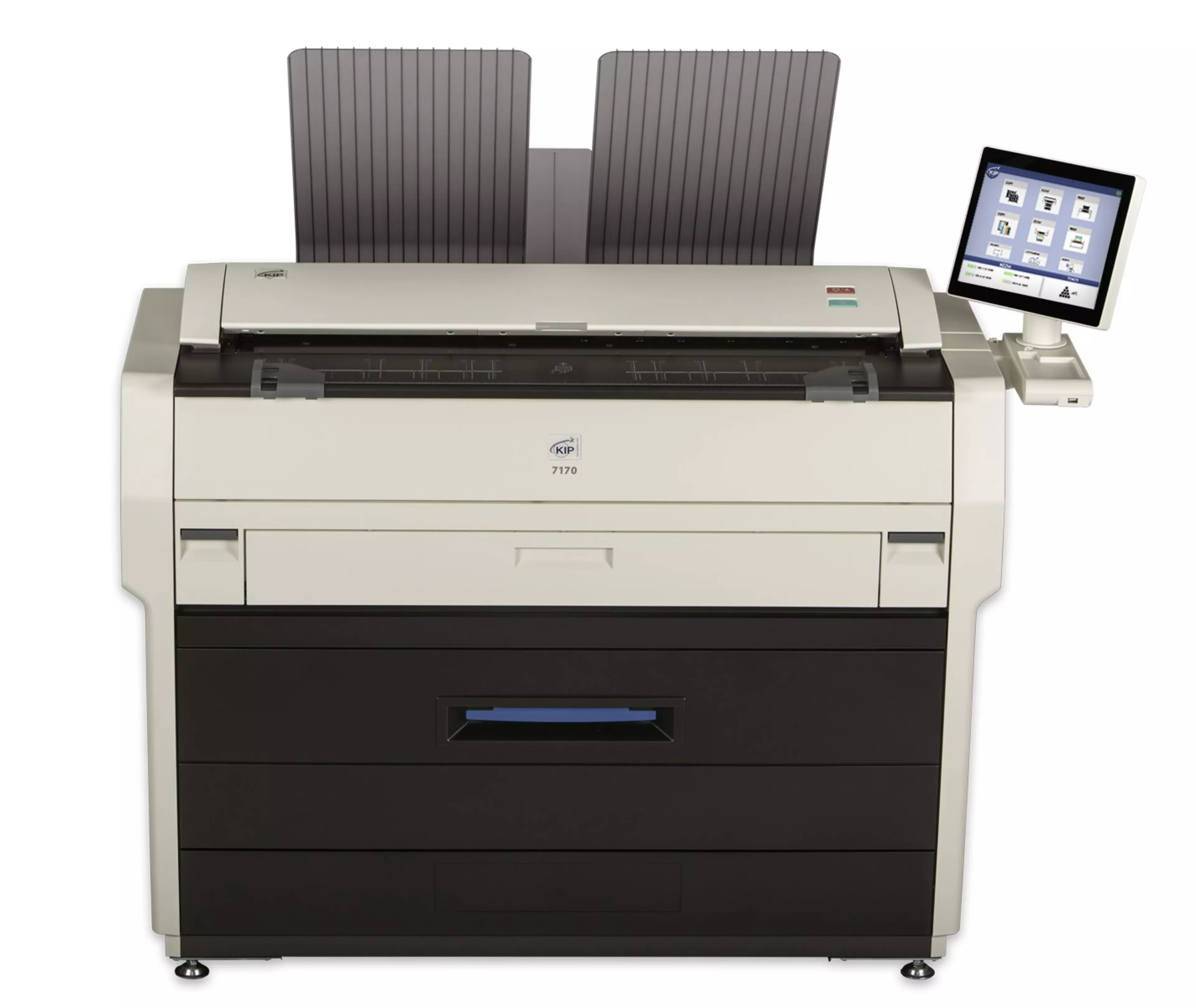

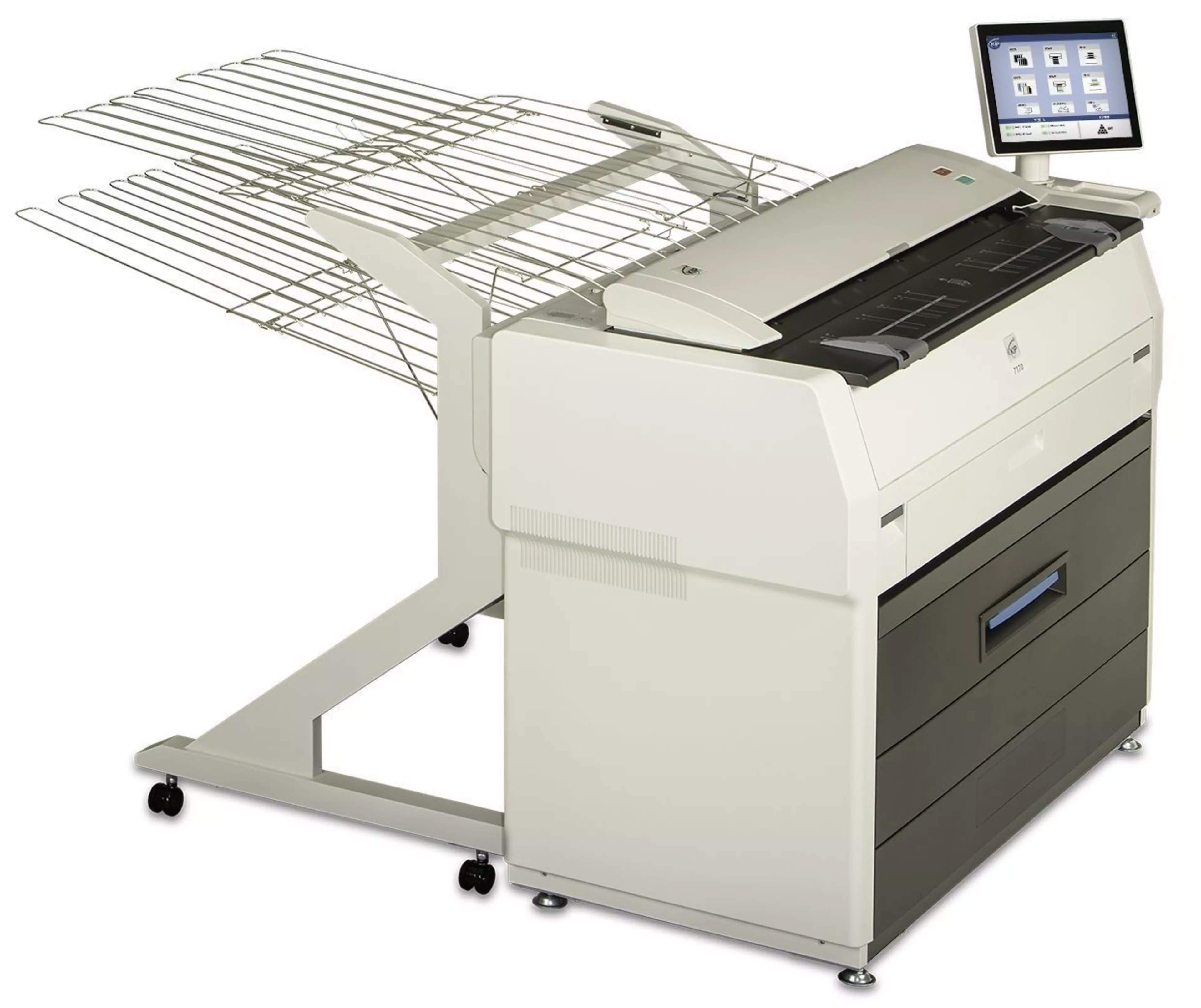

KIP 7170

Sistem KIP 7170 z možnostjo nadgradnje je popolna naprava za optično branje, kopiranje in tiskanje dokumentov širokega formata, ki izpolnjuje potrebe posameznih uporabnikov in delovnih skupin. Vsestranski večfunkcijski sistem je zasnovan za cenovno ugodno črno-belo tiskanje LED in omogoča podajanje prek dveh rol in izboljšano nalaganje ter pregibanje.

Profesionalni tiskalnik KIP 7170

Specifikacije in prenosi

Specifikacije in prenosi
System Configurations
2 Roll Print/Copy/STF with Color STF B&W Wide Format Printer with Integrated Scan System
Stacking Systems (standard) Integrated top stacking - 50 sheet capacity
Stacking Systems (optional) Rear Print Tray, Print & Original Stacking System, KIP 1200 Stacker
Folding Systems (optional) KIP Fold 1000, KIP Fold 2800
Media Capacity 2 roll media drawer
General
Print Technology Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed 3.3 A0 size pages per minute, First Print Output Time 18 seconds A1 size page
Warm Up Time Instant from standby, <4 minutes from start up
Configurations Multifunction system (print/copy/scan) 2 Rolls
Electrical Requirements 220-240 V, 50/60 Hz, 7 A
Power Consumption Sleep -<14 W Printing - 1.5 kW
Dimensions 1,590 mm W x 700 mm D x 1,510 mm H
Weight 244 kg
Printer
Print Resolution 600 x 2400 dpi
Paper Capacity 290 sqm roll media (standard)
Output Sizes Width 297 - 914 mm
Output Sizes Length 6 m standard, 152 m optional
Paper Weight Bond-Plain 64-84 gsm,Vellum-Translucent-Tracing 80 gsm, Film 75 micron
Media Type Bond-Plain, Vellum-Translucent-Tracing, Film (compatible with recycled & coloured bond)
Controller
Controller Type KS8 Controller with Windows 7 embedded
Memory 2 GB DDR3 - Upgradable to 4 GB
Compatible File Formats PDF, DWF, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, PCX, CIT/TG4, VCGL, Uncompressed, Grayscale TIFF, TIFF Packbits, IOCA, EDMICS, TLC, PNG, JPEG
KIP 7170 Scanner
Scanner Type Fully Integrated - C.I.S. with KIP RTT Technology
Scan Resolution 600 x 600 dpi optical resolution
Scan Speed 195 mm per second (B&W)
66 mm per second (Colour)
Scan Format TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination Local USB (Removable Media), Unlimited System Mailboxes (Local), Unlimited FTP, Unlimited SMB
Original Size Width 210 mm - 914 mm
Original Thickness Up to 1.6 mm thick
KIP Print Management Software
KIP Touchscreen Integrated Cloud Connections Full integration with SkyDrive, Google Drive and Dropbox
Concurrent Print & Scan to File Scan images to file while printing, select number of copies, select output media
File to Print Fully cloud connected. Scan mailboxes, print from removable media, print from network locations, view images prior to printing, apply folding preferences, save/recall print jobs
Copying & Scanning Fully cloud connected. Collated sets copying ,recall, edit & reprint previous jobs, set copy & concurrent print, apply digital stamps, scan directly to multi-page PDF, DWF or TIF, Apply folding preferences to copies, scan to USB removable media drives
System Management Print queue control, key code management, inkjet configuration, illustrated operator guides, system guides, service mode access, system pre-set access
KIP Printing Applications KIP Print KIP Print network printing software is an easy to use application designed to provide operators with a fast and accurate means of producing high quality print sets. An intuitive ribbon style interface with an emphasis on job building; featuring column browsing, colour thumbnail previews and total pre-flight control.
KIP Cloud Printing The ability to produce wide format prints using nothing more than an email with attachments and a few key words helps keep mobile clients on the go to stay productive.
KIP PrintNet Web Printing Web-based printing utility which facilitates management of the print queue, configuration of files for printing from Windows, UNIX and Mac based internet browser applications
KIP Windows/AutoCAD Drivers Windows driver supports 32 or 64 bit B&W Windows printing, set collation, job accounting, media selection & folding features. AutoCAD driver enables printing directly from AutoCAD applications with advanced vector/raster print data control.
KIP Touchscreen Printing KIP Touchscreen eliminates the need for additional PC hardware by printing documents from removable media such as standard USB drives & network drives.
KIP Cost Review Application Cost Review Application and KIP Track System KIP Cost Review Application reports can be delivered via email or printed on demand to provide information related to toner coverage, media use and recent job details. When activated, the KIP Track system requires operators to log in before operating.
KIP Color Plus Colour Scanning Scan directly to PDF, JPG and TIFF, automatic quality pres-ets, scan directly to USB and removable media, scan DPI from 200-600, scan to FTP, hard drive, user mailbox, email, scan preview, auto size detection, auto image colour, original and copy pre-sets, unlimited pre-sets, lead and trail edge adjustments.
Colour Copying (optional) Copy directly to wide range of inkjet printers, multiple copy count , reduction enlargement, rotate, crop, mirror, invert, zoom, area of interest, scale to fit, auto image colour, original and copy pre-sets, unlimited copy pre-sets, lead and trail edge adjustments, closed loop calibration, copy preview.
Colour Printing (optional) Print single or multiple (sets) images directly to wide range of inkjet printers, multiple print count , reduction enlargement, rotate, mirror, zoom, invert, multi-touch preview, area of interest, scale to fit, closed loop calibration, auto image colour pre-sets, unlimited print pre-sets, lead and trail edge adjustments, print preview.
Software Options
PDF Printing Keycode Includes support for Postscript levels 1, 2 & 3, PDF 1.7

  • Podpora in razpoložljivost naštetih specifikacij in funkcionalnosti je odvisna od operacijskih sistemov, aplikacij, omrežnih protokolov, kot tudi omrežnih in sistemskih konfiguracij.
  • Slike in ilustracije nekaterih produktov vsebujejo dodatno/opcijsko opremo.
  • Opisi specifikacij in dodatne opreme so osnovani na osnovi trenutno dostopnih informacij in so lahko predmet sprememb brez predhodnega obvestila.
  • Konica Minolta si pridružuje pravico do napak in ne garantira, da so vse informacije brez napak.
  • Microsoft, Windows in Windows logo so blagovne znamke ali registrirane blagovne znamke Microsoft Corporation v ZDA in/ali drugih državah.
  • Vsa ostala imena, znaki in logotip so lahko blagovne znamke ali registrirane blagovne znamke njihovih lastnikov in jih kot take priznavamo.

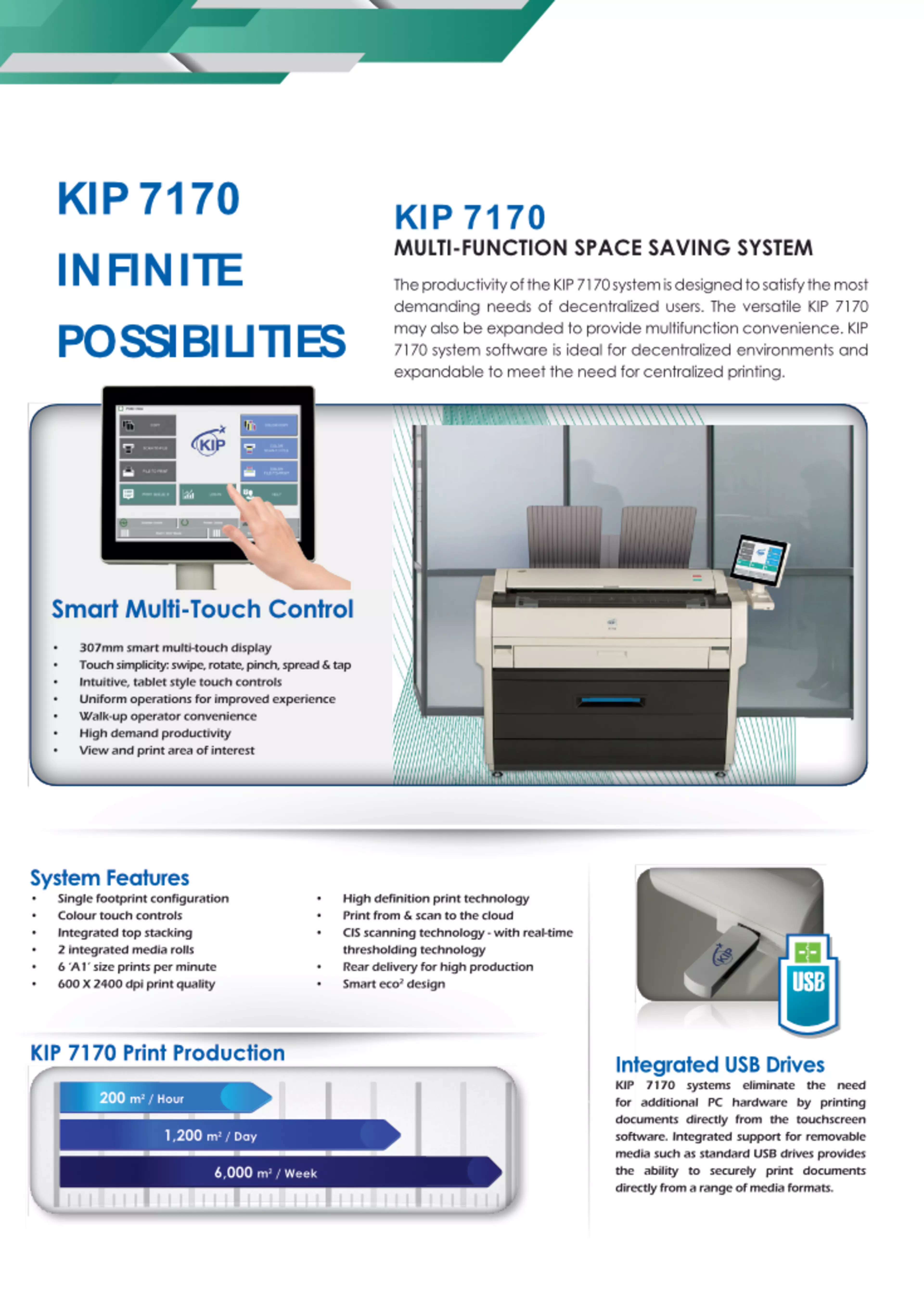

Če želite imeti na voljo vse informacije o aparatu si oglejte prospekt (angleško).

KIP 7170 prospekt
