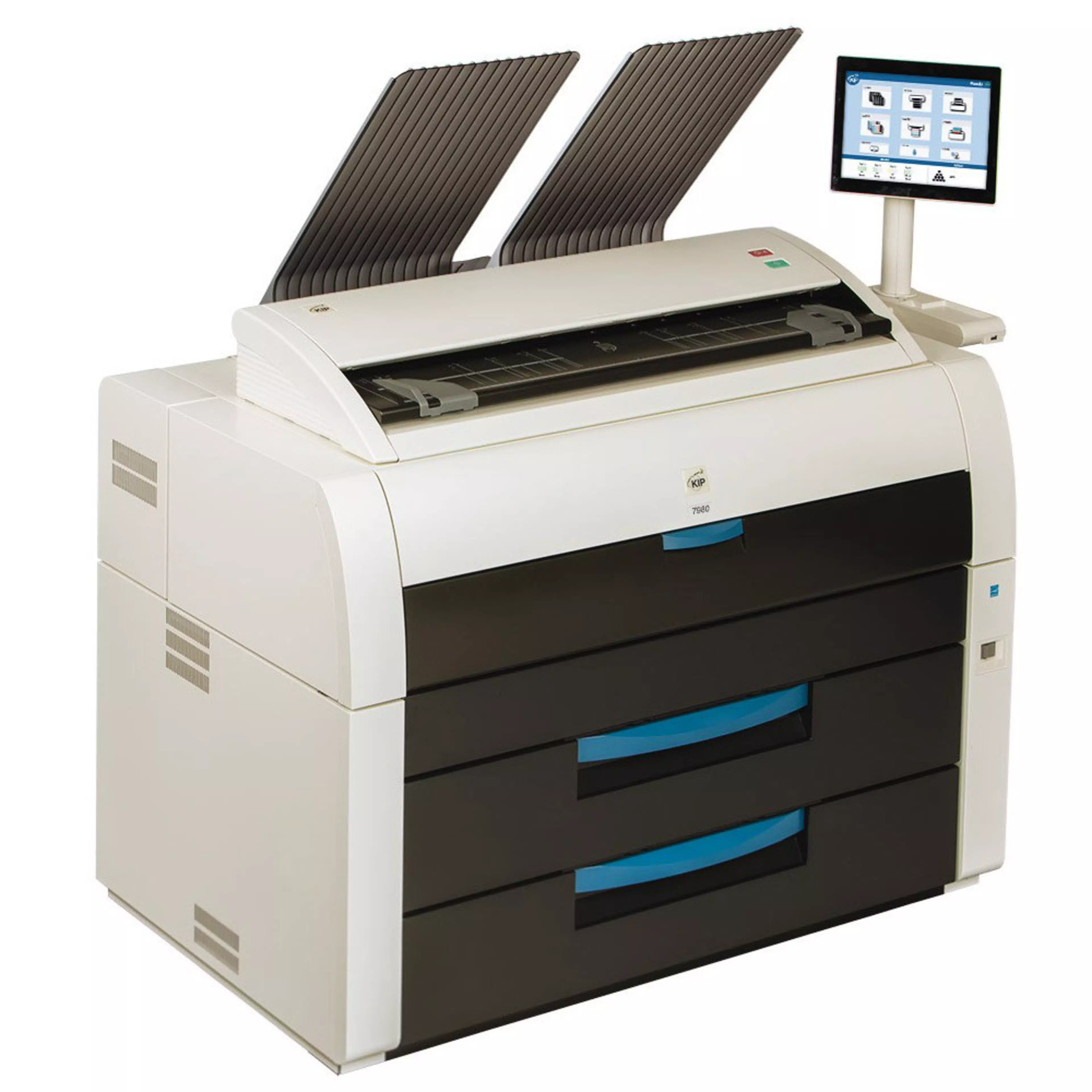

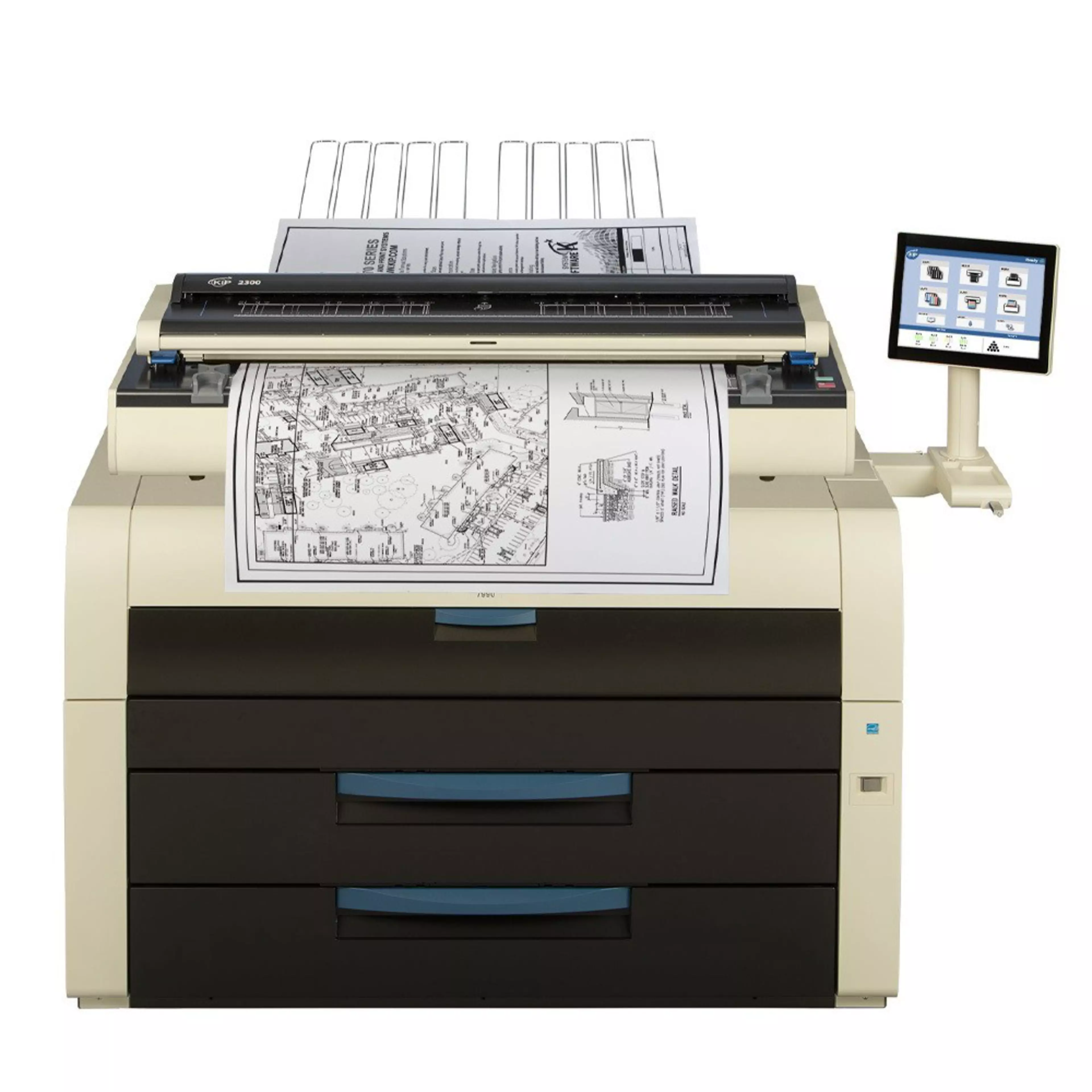

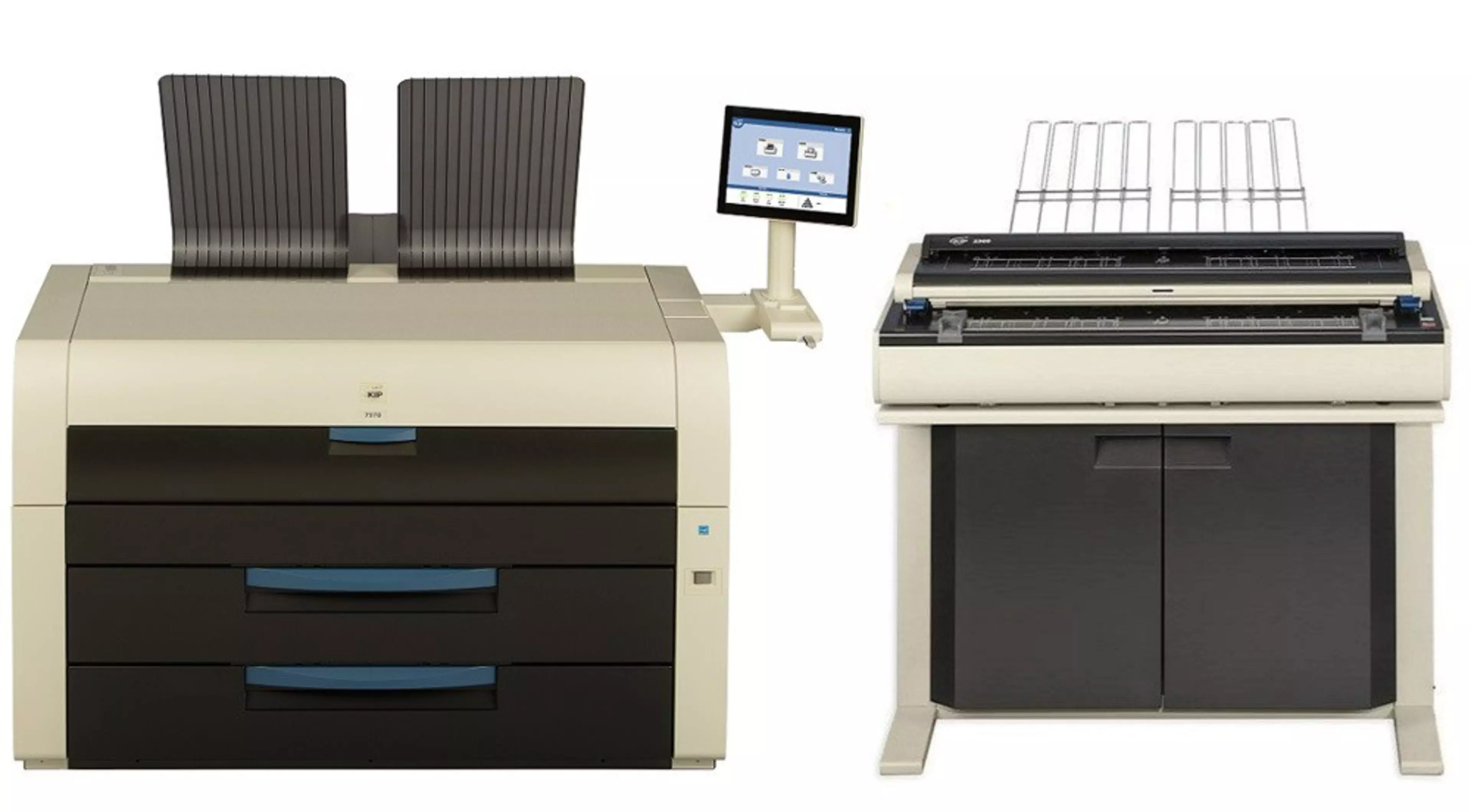

KIP 7990

  • Proizvodna večfunkcijska zasnova z optičnim bralnikom KIP 2300 CCD
  • 14 strani velikosti D’/A1 na minuto – 5040 Sq./Ft. na uro
  • Nova konfiguracija z 2 ali 4 rolami
  • Nalaganje z zgornje strani
  • Programska oprema K sistema KIP
Stopite v stik z nami!

Lastnosti

Lastnosti

Večfunkcijski proizvodni sistemi KIP 7990

Večfunkcijski proizvodni sistemi KIP 7990 izpolnjujejo današnje potrebe po zahtevnih nakladah in skrajšanih dobavnih rokih ter pričakovanja po najvišji kakovosti. Upravljavci bodo uživali v vrhunskem preverjanju pred tiskom in produktivnem pošiljanju tiskalnih opravil s pomočjo profesionalnih programov v zbirki KIP System K Print Management Suite. Proizvodni optični bralnik KIP 2300 CCD postavlja edinstveno visok standard hitrosti barvnega optičnega branja, vsestranskost podajanja debelih dokumentov s potiskano stranjo zgoraj/spodaj in kakovost digitalnega preslikovanja.

Profesionalni tiskalnik KIP 7990

Specifikacije in prenosi

Specifikacije in prenosi
General
Description Monochrome wide format print/copy/scan with colour scanner
Type Electrophotography (LED) with organic photoconductor (OPC) and closed toner
Speed A1 size per minute 14
Warm up time Less than 2 minutes from standby
Configurations Printer / MFP
Roll options 2 or 4 Roll
Output delivery Top / rear
Electrical requirements 220 – 240 V, 50/60 Hz, 16 A
Power consumption 2,700 W (printing), 1,100 W (standby)
Printer
Print resolution 600 x 2,400 dpi
Paper capacity 2 or 4 roll
Output sizes width 297 mm – 914 mm
Output sizes length 6 m (standard), 150 m based on media validation
Paper weight (roll media) Bond-plain 64–90 gsm, vellum-translucent-tracing 80 gsm, film 75 gsm
Media types Bond, vellum, film
Controller
Controller type KIP System K Controller with Windows® 7 embedded
Memory 2GB DDR3 standard - upgradable to 4 GB
Hard drive minimum 320 GB - unlimited upgrade
Supported file type DWF, PDF, PDF-A, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG
Scanner KIP 2300
Scanner Type C.C.D. with KIP Tru-Speed Technology and KIP RTT Technology
Scan Resolution 600 x 600 dpi optical resolution
Scan Speed Up to 18 m per minute (Mono) and up to 9 m per minute (Color)
Scan Formats TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination Local USB (Removable Media), Unlimited IPS Mailboxes (Local), Unlimited FTP, Unlimited SMB
Original Size Width/Length Originals Up to 1,066 mm - 914 mm Scan width
Original Thickness Up to 16 mm Automatic thickness detection
Original Face Up/Face Down Both - Dual Original Feed Tables
Interface USB 2.0, KIP Tru•Speed Technology (2.3GB per sec data transfer)
Dimensions 1,399 mm W, 480 mm D, 310 mm H
Weight 73 kg
Electrical 100-240V AC 50/60 Hz
Power Consumption <120 W

  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

Če želite imeti na voljo vse informacije o aparatu si oglejte prospekt (angleško).

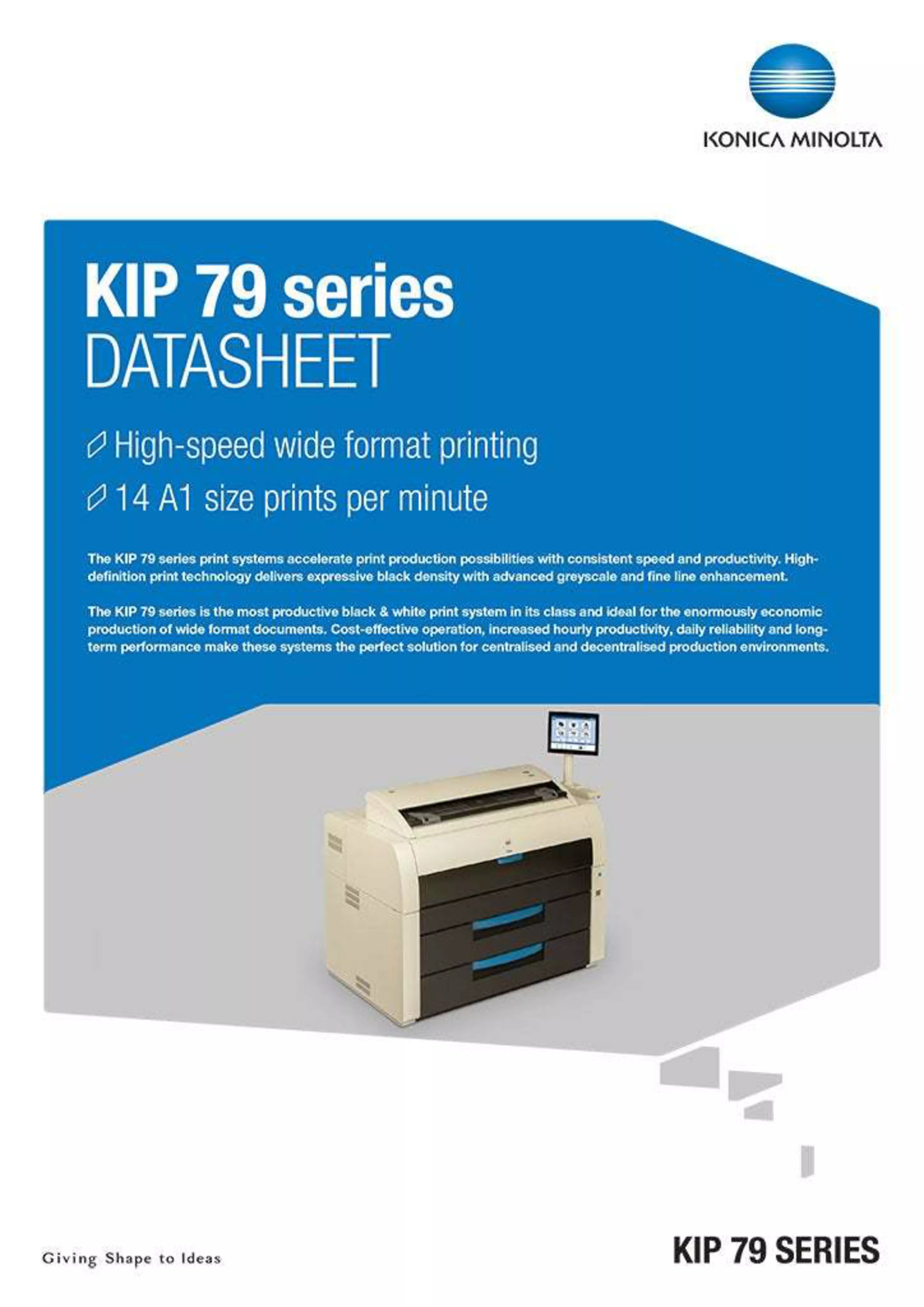

KIP 7990 prospekt
