| General |

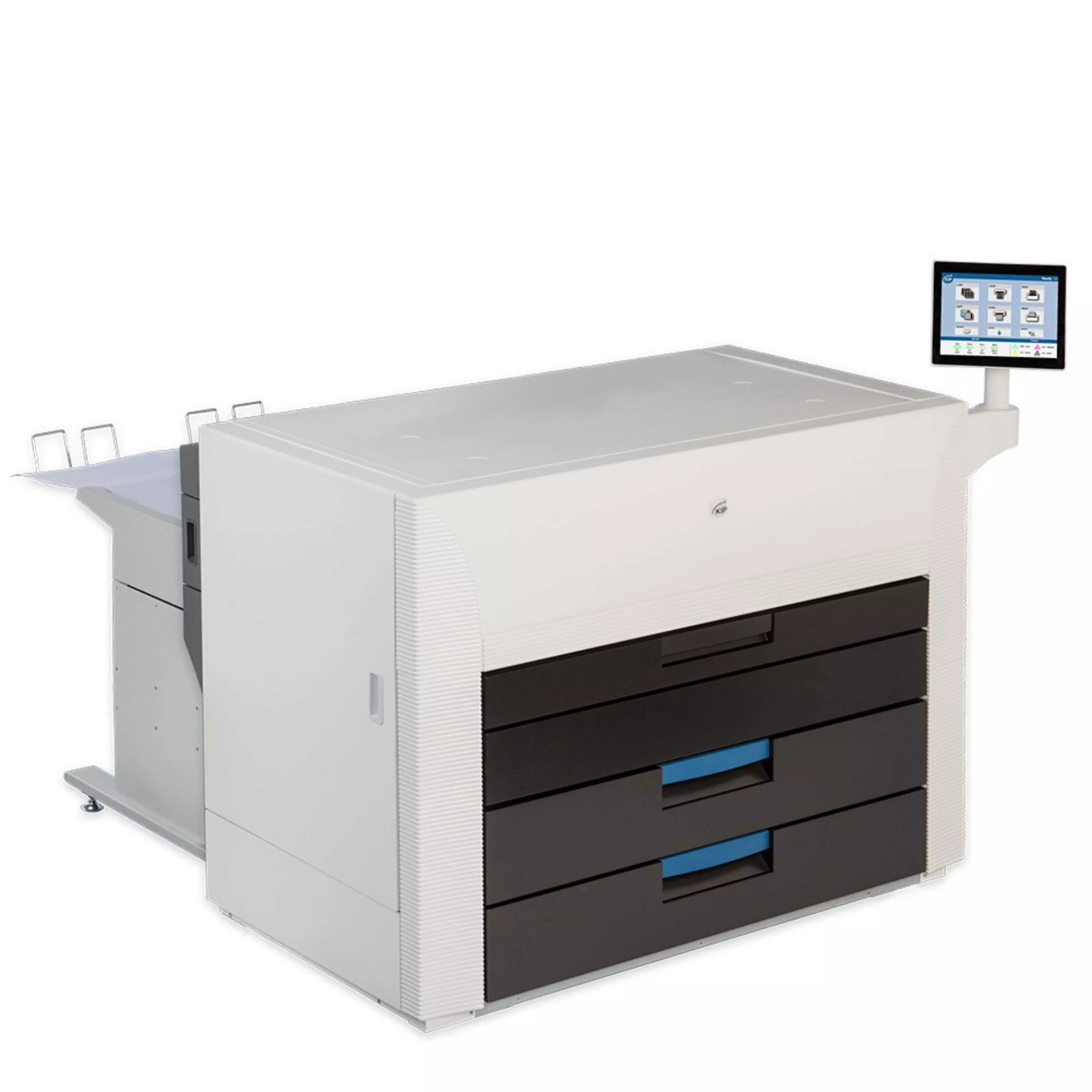

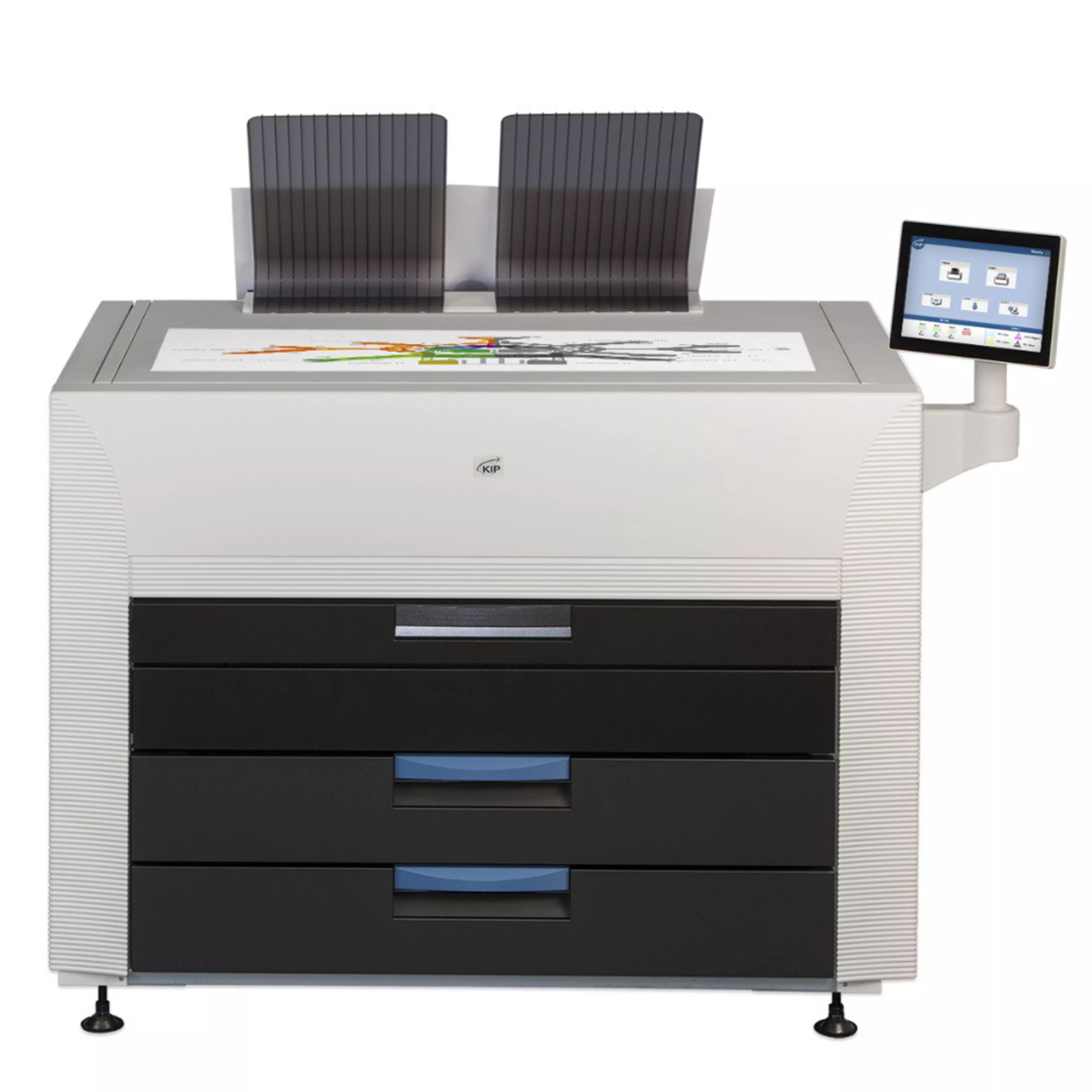

| 4 Roll Colour and Black & White Printer |
Colour and black & white printer with intelligent KIP System K touchscreen |

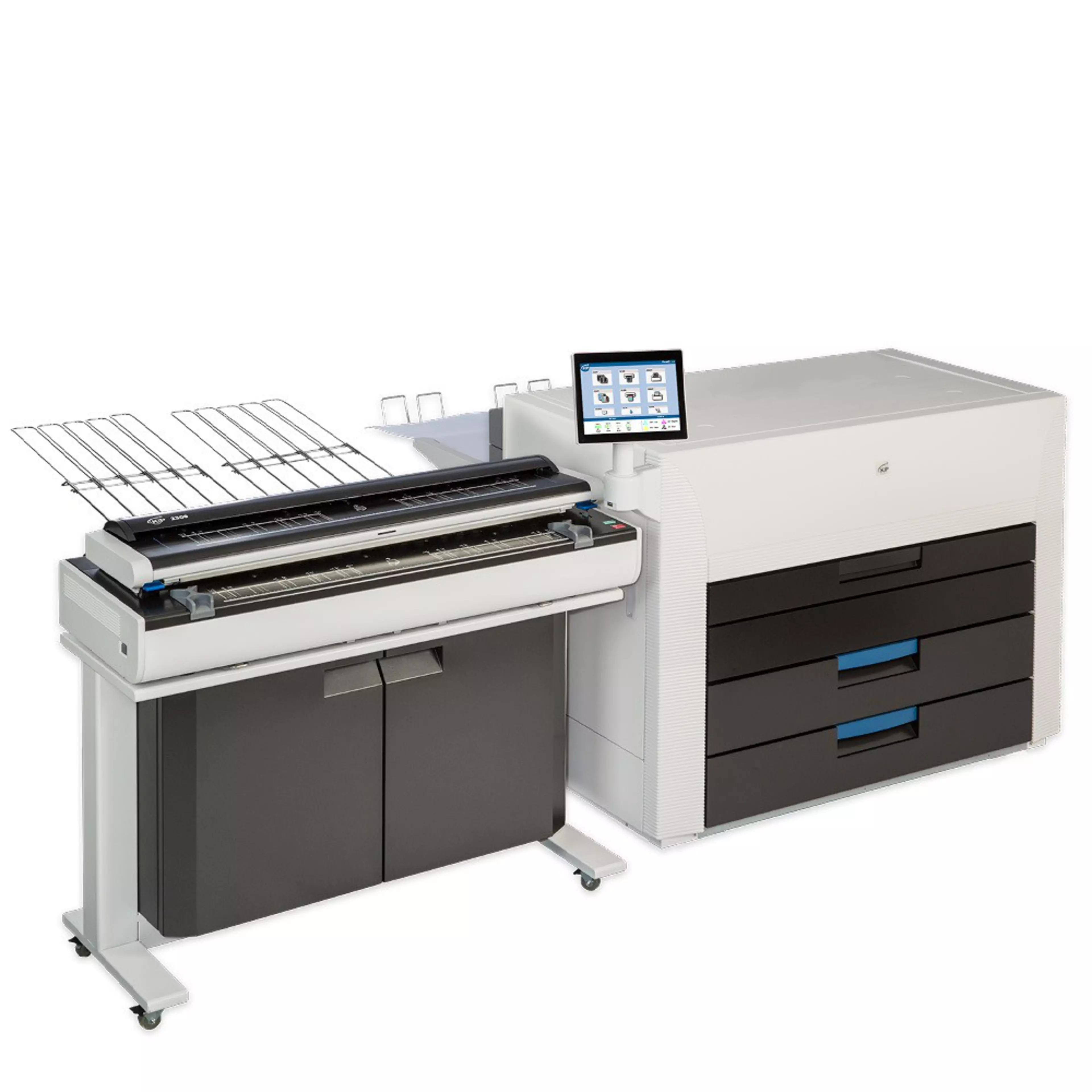

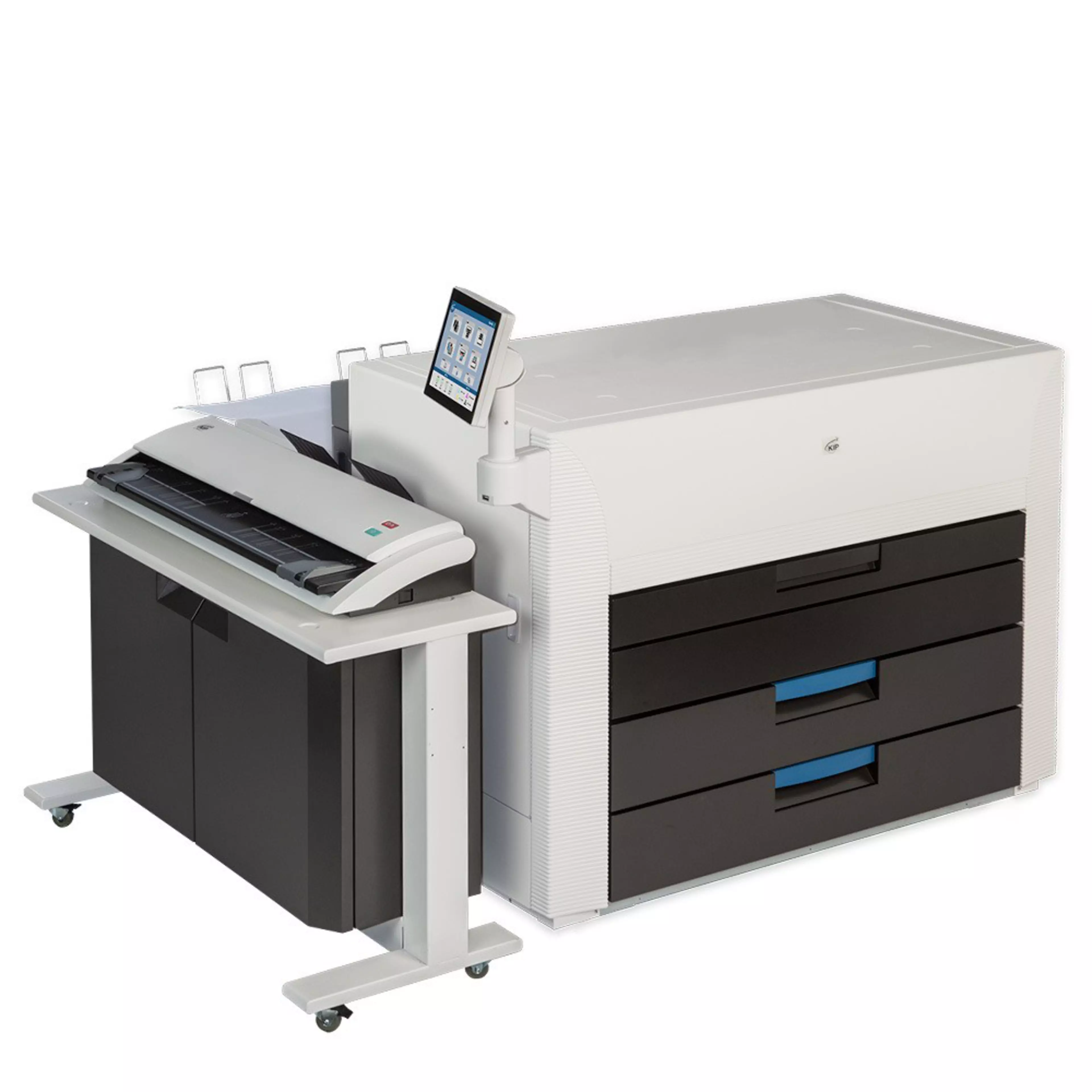

| 4 Roll Colour and Black & White Print/Copy/STF |
Colour and black & white printer with intelligent KIP System K touchscreen for Print/Copy and STF functions |
| System Scanners |
KIP 980: KIP 720 CIS Scanner
KIP 990: KIP 2300 CCD Scanner |
| Scanner Stand |
KIP 720 / KIP 2300 Scanner Stand (for the KIP 980 – 990 or optional for stand-alone scan applications) |
Stacking Systems
(optional) |
KIP 900 Stacker |
Finishing Systems
(optional) |
KIPFold 2800 |
| Type |
LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner |
| Configurations |
Printer or multi-function system (print/copy/scan) |
| Speed |
Up to 7,200 sq. ft (670 m2) in single pass black or 5,760 sq. ft. (535 m2) per hour in colour regardless of image type or print resolution |
| Warm Up Time |
Instant from standby, less than 4 minutes from power on |
| Toner |
Four colour (CMYK), dry toner, print images are UV resistant and waterproof |
| Input Power |
North America: 2x 208-240VAC +6%/-10% 50/60Hz, 16 A
EU/UK: 2x 220-240 V, 50/60 Hz, 16 A |
| Power Consumption |
Printing 2.4 kWh (Average), Ready 630 W (Average), Sleep Mode 3.4 W |
| Acoustic Noise |
< 65 db (printing), < 60 db (standby) (ISO 7779) |
| Ozone |
< 0.05 ppm (average of 8 hours) |
| Dimensions (W x D x H) |
60” x 43” x 48” / 1500 x 1080 x 1220 mm |
| Weight |
1,212 lbs / 550 kgs
NOTE: Weight of the optional scanner or stacker is not included |
| Printer |
| Print resolution |
600 x 1,800 dpi |
| Paper capacity |
7,800 sq ft / 724 sq m ( 4 rolls + cut sheet ) |
Output sizes width
(roll media) |
11” – 36” / 297 mm – 914 mm (3” Core) |
Paper weight
(roll media) |
See KIP Media Guide |
| Sheet Bypass |
Up to 40 lbs. / 150 gsm bond | Maximum sheet size 36”/ 914 mm x manageable length | Minimum sheet size 11” x 17” / A3 |
| Media Types |
See KIP Media Guide |
| Scanner/Copier |
| Resolution |
600 dpi (optical) |
| Original |
Single Sheet, image viewable/face up |
| Widths |
8.5” – 36” / 210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN) |
| Length |
8.5” – 19.7’ / 210 mm – 6 m |
| Controller |
| Controller type |
System K Embedded, Windows Standard Embedded 7 – 64 bit, i7 Quad Cord (min) |
| Memory |
16 GB (min) |
| Hard drive |
256 SSD (min) |
| Compatible File Formats |
Raster Colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC
Vector Colour/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/ EPS), PDF, Autodesk DWF, Multipage PDF & DWF
Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF
Vector B&W: Calcomp 906/907 |
| Space, electrical & environmental requirements |
| Total Space (minimum) |
132” x 182” / 3350 mm x 4610 mm ( W x D ) (KIP 900 Series with stacker) The flexibility of the KIP 980 / 990 system permits the scanner to be placed perpendicular or parallel to the KIP printer for individual workflows which can result in special requirements that may differ than noted above. |
| Electrical Requirements |
KIP 970 = Dual 208V – 240V 50/60 Hz, 16A
KIP 980 / 990 = North America - the above, plus one 110V – 120V 50/60 Hz, 6A or higher (for KIP scanner)
EU & UK - three 220V – 240V 50/60 Hz 16A (for printer and scanner) |
| Electrical Receptacle |
North America = two NEMA 6-20 R (plus one NEMA 5-20 R for the KIP 980 / 990)
Europe = CEE 7 (x3 for KIP 980 / 990)
UK = BS 546 (x3 for KIP 980 / 990)
All other regions = please refer to your local standards |
| Network Port |
RJ-45 port-CAT5 or higher. LAN rated at least at 100 mb.
Recommended is 1000 mb |
| Room Temperature |
50 – 86°F / 10 – 30°C |
| Site Survey |
KIP 900 Series site survey documentation is to be completed prior to system installation |
| Min. Door Width |
32” / 813 mm |
