KIP 7580

Nov integrirani barvni optični bralnik CIS KIP 720
10 strani velikosti A1 na minuto

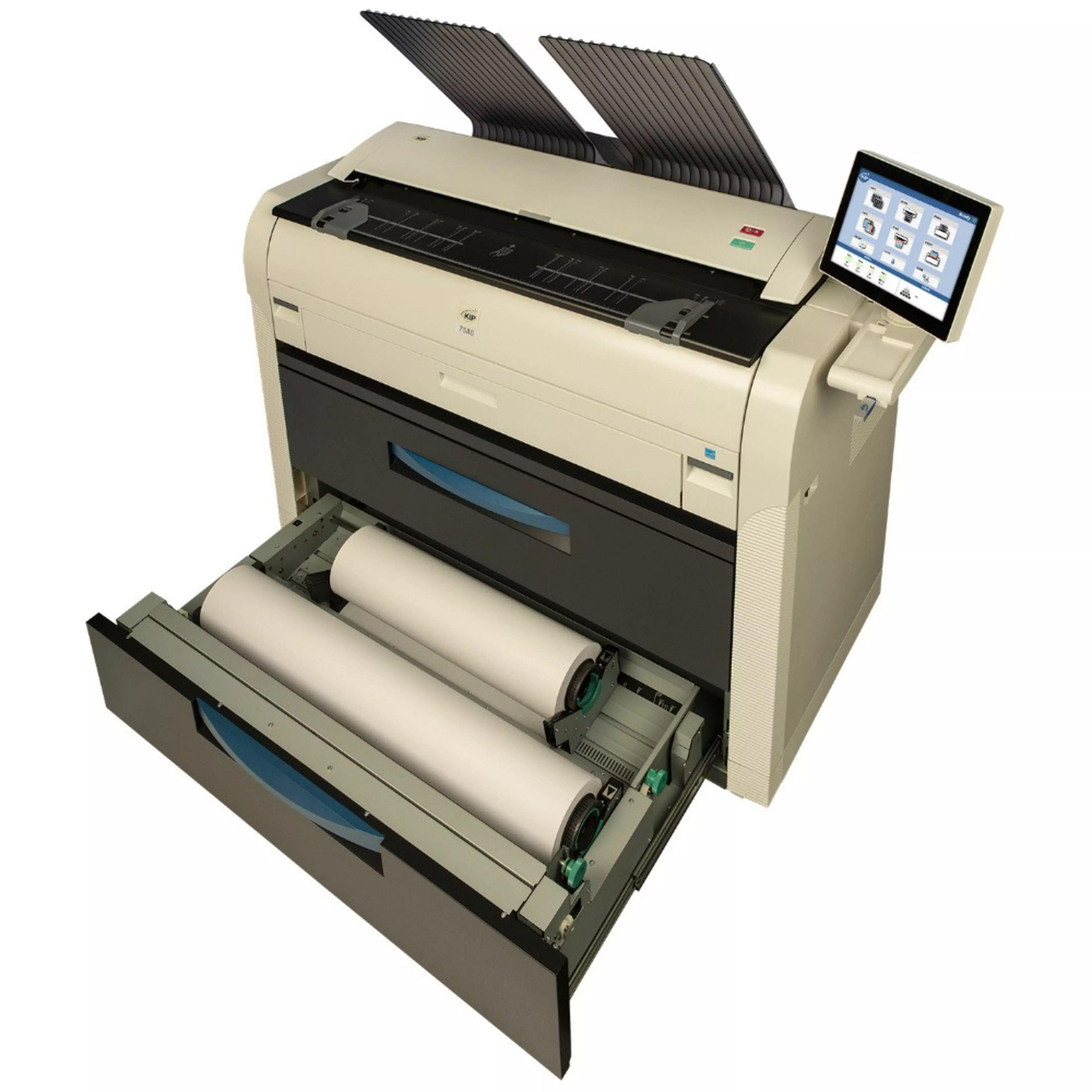

Konfiguracija z 2 ali 4 rolami

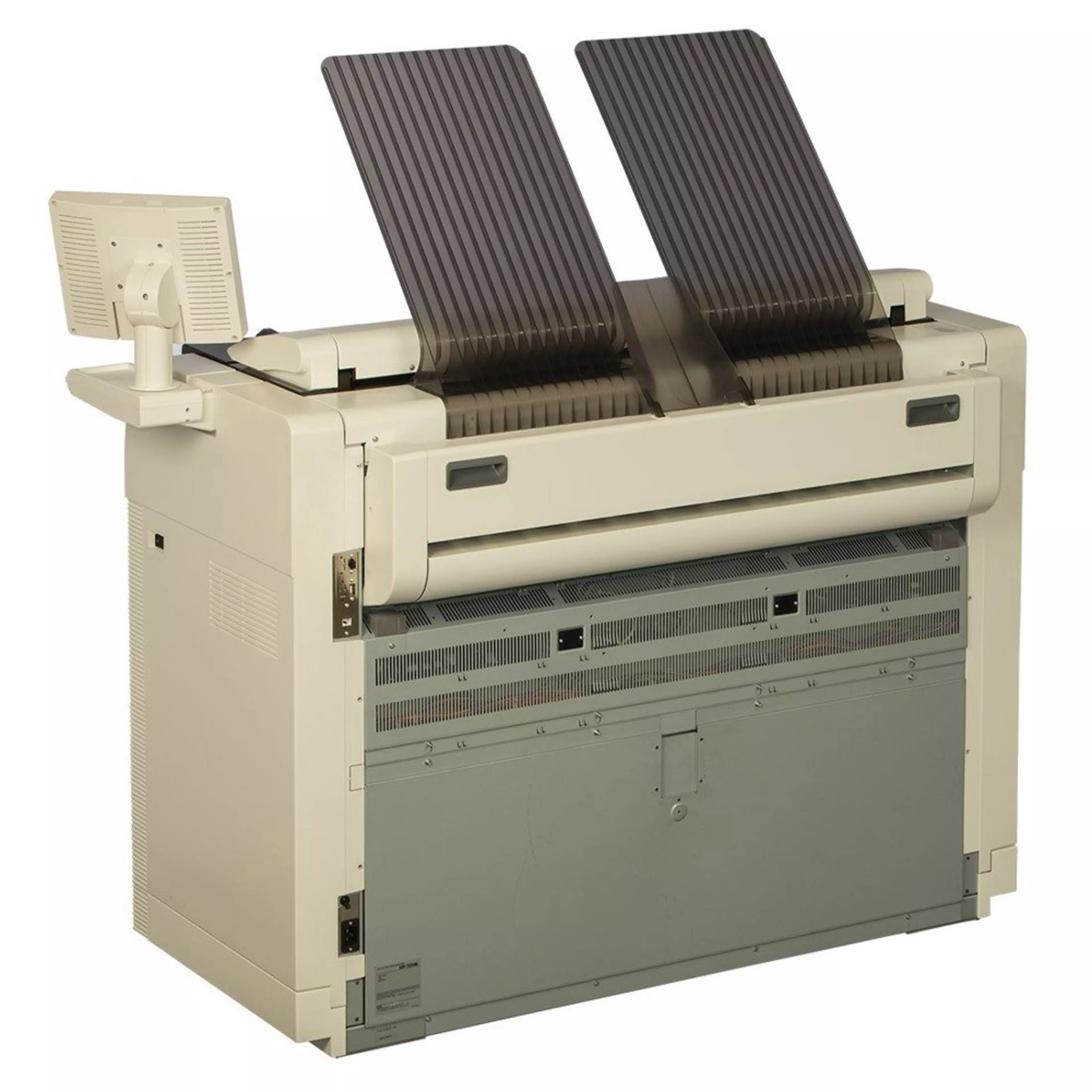

Nalaganje z zgornje strani
Zasnova z majhnimi zunanjimi merami
Programska oprema K sistema KIP

Kontaktirajte nas!

Deli:

Lastnosti

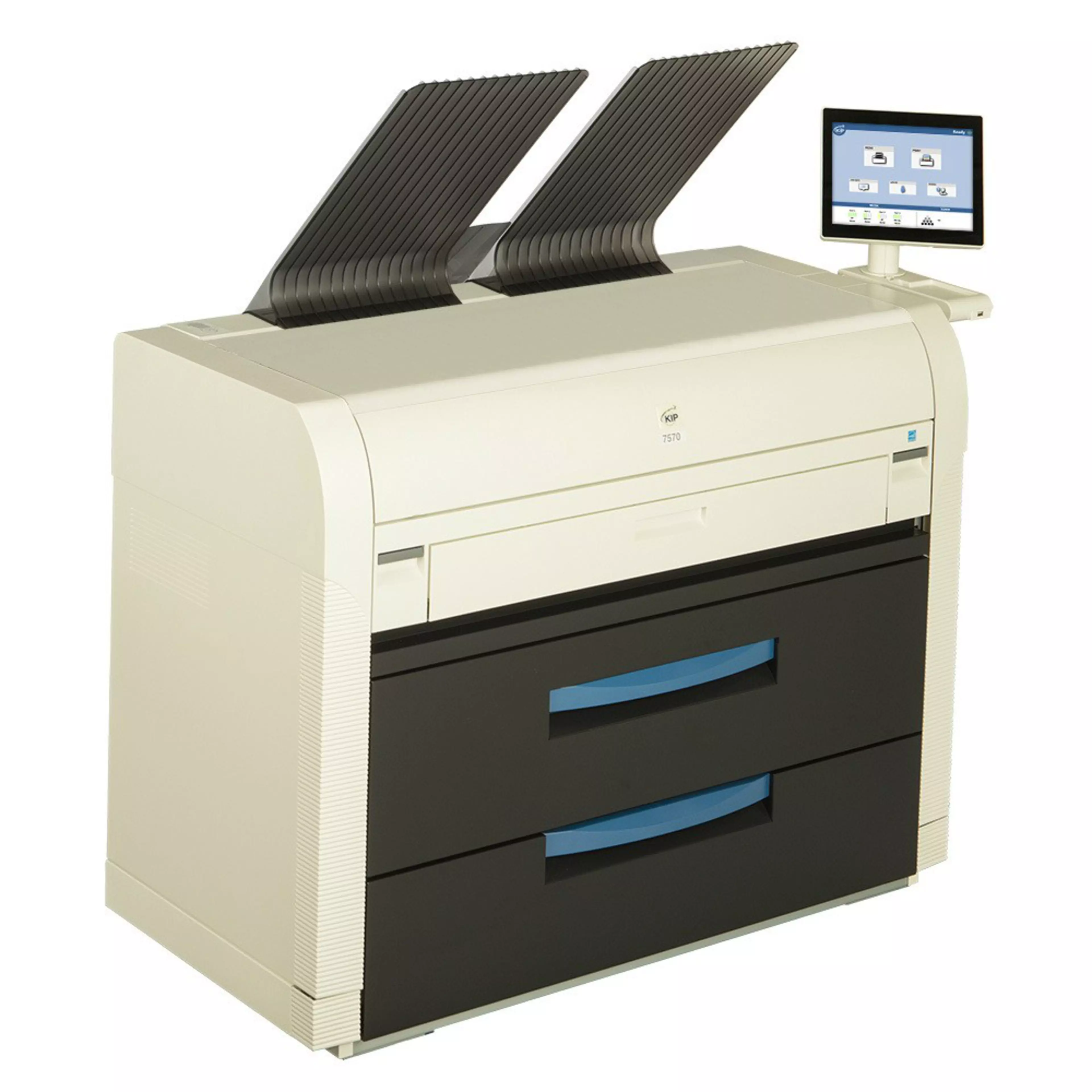

KIP 7580 – večfunkcijski sistem

Večfunkcijski sistemi KIP 7580 s funkcijo optičnega branja CIS ponujajo novo kompaktno zasnovo z možnostjo nalaganja z zgornje strani, kar pomeni, da jih lahko postavite tja, kjer jih potrebujete – v manjše prostore ali ob steno. Učinkovitost avtomatiziranih potekov dela po zaslugi pametnega večdotičnega zaslona na dotik KIP, ki omogoča upravljanje funkcij z enim dotikom. Avtomatizacija potekov dela si zapomni upravljanje izbranih funkcij sistema in omogoča učinkovitost z enim dotikom, kar poenostavi uporabniško interakcijo, prihrani čas, zniža stroške in izboljša natančnost.

Specifikacije
Description	Monochrome wide format print/copy/scan with colour scanner
Type	Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed A1 size per minute	10
Warm up time	Less than 2 minutes from standby
Configurations	Printer / MFP
Roll options	2 or 4 roll
Output delivery	Top / rear
Electrical requirements	220V-240V +6% or -10%, 50/60Hz, 13A
Power consumption	1,500 W (printing), 430 W (standby)
Print resolution	600 x 2,400 dpi
Paper capacity	2 or 4 roll
Output sizes width	297 mm – 914 mm
Output sizes length	6 m (standard), 150 m based on media validation
Paper weight	Bond-plain 64–90 gsm; vellum-translucent-tracing 80 gsm; film 75 gsm
Media types	Bond, vellum, film
Controller type	KIP System K Controller with Windows® 7 embedded
Memory	2GB DDR3 standard - upgradable to 4 GB
Hard drive minimum	320 GB - unlimited upgrade
Supported file type	DWF, PDF, PDF-A, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG
Scanner Type	C.I.S. with KIP RTT Technology
Scan Resolution	600 x 600 dpi optical resolution
Scan Speed	Up to 203 mm per second (B&W) and up to 66 mm per second (Color)
Scan Format	TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination	Local USB (Removable Media), Unlimited IPS Mailboxes (Local), Unlimited FTP, Unlimited SMB
Original Size	Width 279 - 914 mm
Original Thickness	Up to 1.6 mm thick
Interface	USB 2.0
Dimensions	1,092 mm x 406 mm x 170 mm
Weight	25 Kg
Electrical	100-240 V AC 50/60 Hz
Power Consumption	<50 W

The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that all specifications mentioned will be error-free.
Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

Če želite imeti na voljo vse informacije o aparatu si oglejte prospekt (angleško).

KIP 7580 prospekt
