KIP 880

  • Večfunkcijski sistem s 4 rolami in integriranim optičnim bralnikom
  • Optični bralnik KIP 720
  • 12-palčni zaslon na dotik pametnega sistema K
  • Standardno nalaganje s sprednje strani
  • Izbirno nalaganje z zadnje strani ali KIPFold
  • Zbirka KIP System K Print Management Suite
  • Gonilniki Windows in AutoCAD
  • Avtomatizacija poteka dela

Lastnosti

Lastnosti

Najnovejše rešitve pri funkcionalnosti širokega formata.

Tiskalnik KIP 880 nudi neprekosljivo večfunkcijsko kopiranje, optično branje in tiskanje za potek dela v podjetjih z velikim povpraševanjem. Njegova zasnova omogoča živahne in dosledne barve od prvega do zadnjega tiskanja. Konfiguracija z integriranim dvojnim odtisom omogoča sočasno optično branje in tiskanje, s čimer boste prihranili dragocen čas pri svojih projektih. Avtomatizacija s pametnim zaslonom na dotik poenostavi zapletene procese kopiranja, optičnega branja in tiskanja z upravljanjem z enim dotikom. Tehnologija tiskanja odpravi zakasnitve zaradi menjav rol in tako poveča produktivnost.

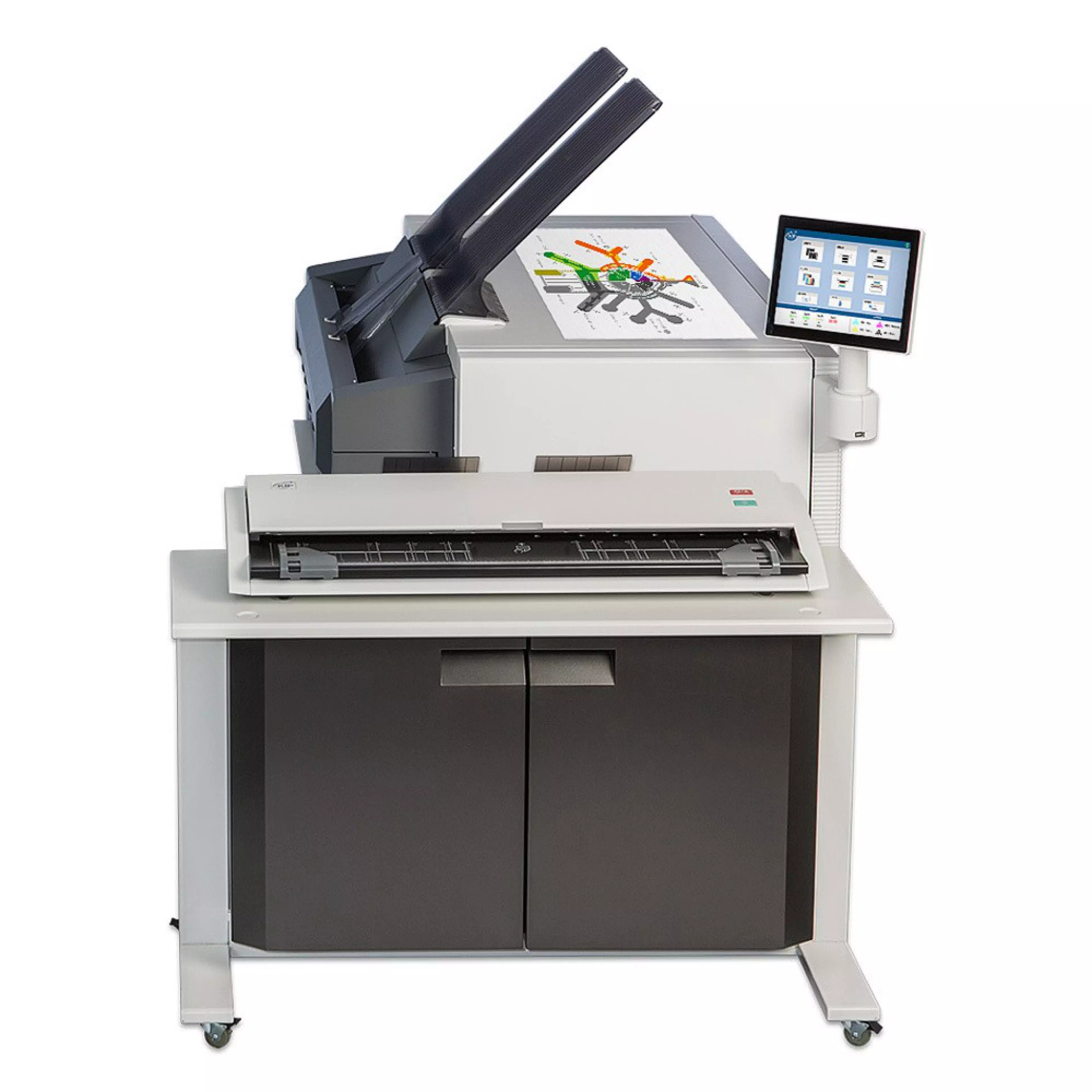

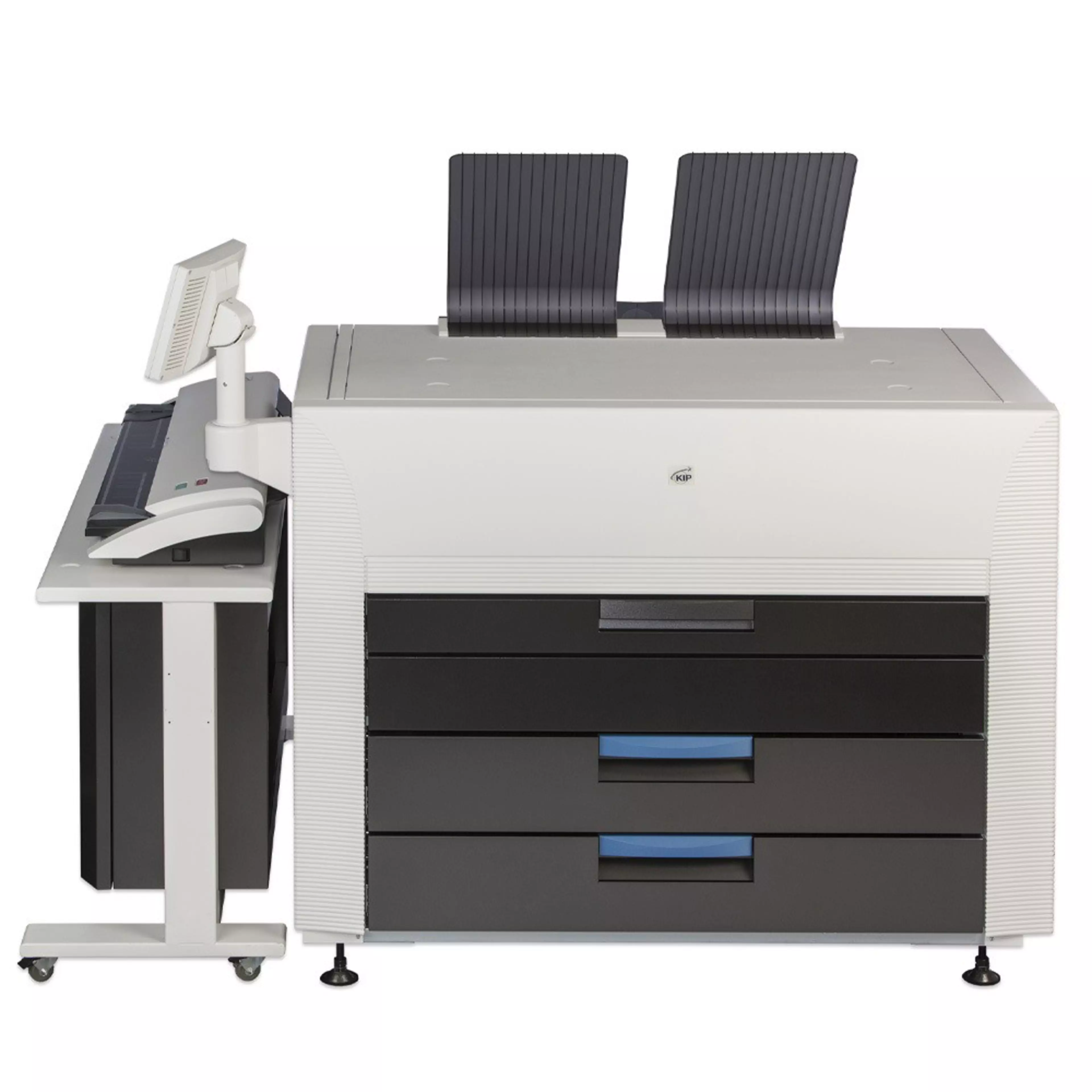

Profesionalni tiskalnik KIP 880

Specifikacije in prenosi

Specifikacije in prenosi
General
2/4 Roll Colour and Black & White Printer

Colour and black & white printer with intelligent
KIP System K touchscreen

2/4 Roll Colour and Black & White Print/Copy/Scan Colour and black & white printer with intelligent Print/Copy/Scan KIP System K touchscreen for Print/Copy and Scan functions
System Scanners KIP 880: KIP 720 CIS Scanner
Scanner Stand KIP 720 / KIP 2300 Scanner Stand (for the KIP 880 – 890
or optional for stand-alone scan applications)
Stacking Systems (standard) Front Stacking Print Tray
Description High production colour and black & white wide format print/copy/scan
Type LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner
Configurations Printer or multi-function system (print/copy/scan)
Speed Up to 268 sqm per hour in either black & white or colour regardless of image type or print resolution
Warm Up Time Instant from standby, less than 6 minutes from power on
Toner Four colour (CMYK), dry toner, print images are UV resistant and waterproof
Input Power EU/UK: 220 – 240 V, 50/60 Hz, 20 A
Power Consumption Ready: 0.6 kWh. Printing: 1.9 kWh, Warm Up: 3.4 kWh, Sleep Mode: 3 Wh
Acoustic Noise < 65 db Printing
Ozone < 0.05 ppm (average of 8 hours)
Dimensions (W x D x H) KIP 880 – 890: 1970 x 1080 x 1220 mm
Weight KIP 880: 556 kg
Weight of the KIP 880 – 890 is dependent on the
scanner model – KIP 720 noted
Printer
Print resolution 600 x 2,400 dpi
Paper capacity 280 sqm ( 2 rolls + cut sheet )
560 sqm ( 4 rolls + cut sheet )
Output sizes width (roll media) 297 mm – 914 mm
Output sizes length (roll media) 210 mm minimum, 64 m maximum (actual length may be dependent on media type and file type limitations)
Paper weight (roll media) Bond: 67 – 150 gsm, Film: 3 – 4 mil Double Matte Polyester, Tracing: 67 – 75 gsm
Banner and Gloss: see KIP 800 Media Guide
Sheet Bypass Up to 150 gsm bond / Maximum sheet size
914 mm x manageable length / Minimum sheet size A3
Media types Bond Paper: Economical Bond, Standard Bond. Specialty
Bond paper: Presentation Bond, Heavy Weight Bond.
Polyester Film: 3 mil Clear, 3 mil Double Matte, 4 mil
White Opaque. Banner Media: Fusion Soft Polyester.
Please see the KIP 800 Series Media Guide for details.
Scanner / Copier
Resolution 600 dpi (optical)
Original Single Sheet, image viewable / face up
Widths 210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN)
Length 210 mm – 6 m
  Please see the KIP 2300 Scanner documentation for details on this optional scanner for the KIP 890 Colour System
Controller
Controller Type System K Embedded, Windows Standard Embedded
7 – 64 bit, i5 Quad Cord (min)
Memory 4 GB (min)
Compatible File Formats Raster Colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC
Vector Colour/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), Adobe PDF, Autodesk DWF, Multipage PDF & DWF
Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF
Vector B&W: Calcomp 906/907
Space, Electrical & Environmental Requirements
Total Space (minimum) 4500 x 2600 mm (W x D) (KIP 880 with KIP 720)
4500 x 5190 mm (W x D) (KIP 880 with KIP 720 with optional rear print stacker)
The flexibility of the KIP 880-890 system permits the scanner to be placed perpendicular or parallel to the KIP printer for individual workflows, which can result in special requirements that may differ than noted above. System access through standard door frames without lifting or tilting.
Electrical Requirements EU/UK: Two – 20-240 V, 50/60 Hz, 16 A (one for KIP Printer and one for KIP Scanner)
Electrical Receptacle Europe = CEE 7 (x2)
UK = BS 546 (x2)
All other regions = please refer to your local standards
Network Port RJ-45 port-CAT5 or higher. LAN rated at least at 100 MB.
Recommended is 1000 MB
Room Temperature 10 – 30°C
Humidity 15 – 80% RH
Site Survey KIP 800 Colour Series site survey documentation is to be completed prior to system installation
  • Podpora in razpoložljivost naštetih specifikacij in funkcionalnosti je odvisna od operacijskih sistemov, aplikacij, omrežnih protokolov, kot tudi omrežnih in sistemskih konfiguracij.
  • Slike in ilustracije nekaterih produktov vsebujejo dodatno/opcijsko opremo.
  • Opisi specifikacij in dodatne opreme so osnovani na osnovi trenutno dostopnih informacij in so lahko predmet sprememb brez predhodnega obvestila.
  • Konica Minolta si pridružuje pravico do napak in ne garantira, da so vse informacije brez napak.
  • Microsoft, Windows in Windows logo so blagovne znamke ali registrirane blagovne znamke Microsoft Corporation v ZDA in/ali drugih državah.
  • Vsa ostala imena, znaki in logotip so lahko blagovne znamke ali registrirane blagovne znamke njihovih lastnikov in jih kot take priznavamo.

Če želite imeti na voljo vse informacije o aparatu si oglejte prospekt (angleško).

KIP 880 prospekt
